Tic-Tac-Toe Engine

Finally, the chess.com of Tic-Tac-Toe. Users can play against multiple engine difficulties while receiving real-time move analysis, position evaluation, and suggestions.

Try it out here!

Tech Stack

Because this app has a ton of components, state, and state-based rendering I’ve chosen to go with React for the project framework.

Install and Run

  1. Download / navigate to the /6-tic-tac-toe-engine directory.
  2. Run npm i to install the necessary dependencies.
  3. Run npm start.

A new browser window should open to http://localhost:3000, where you should be able to start using the app.

UI

The styling and color-palette of the UI is based mainly on chess.com. I’ll give a quick overview of some of the important UI components:

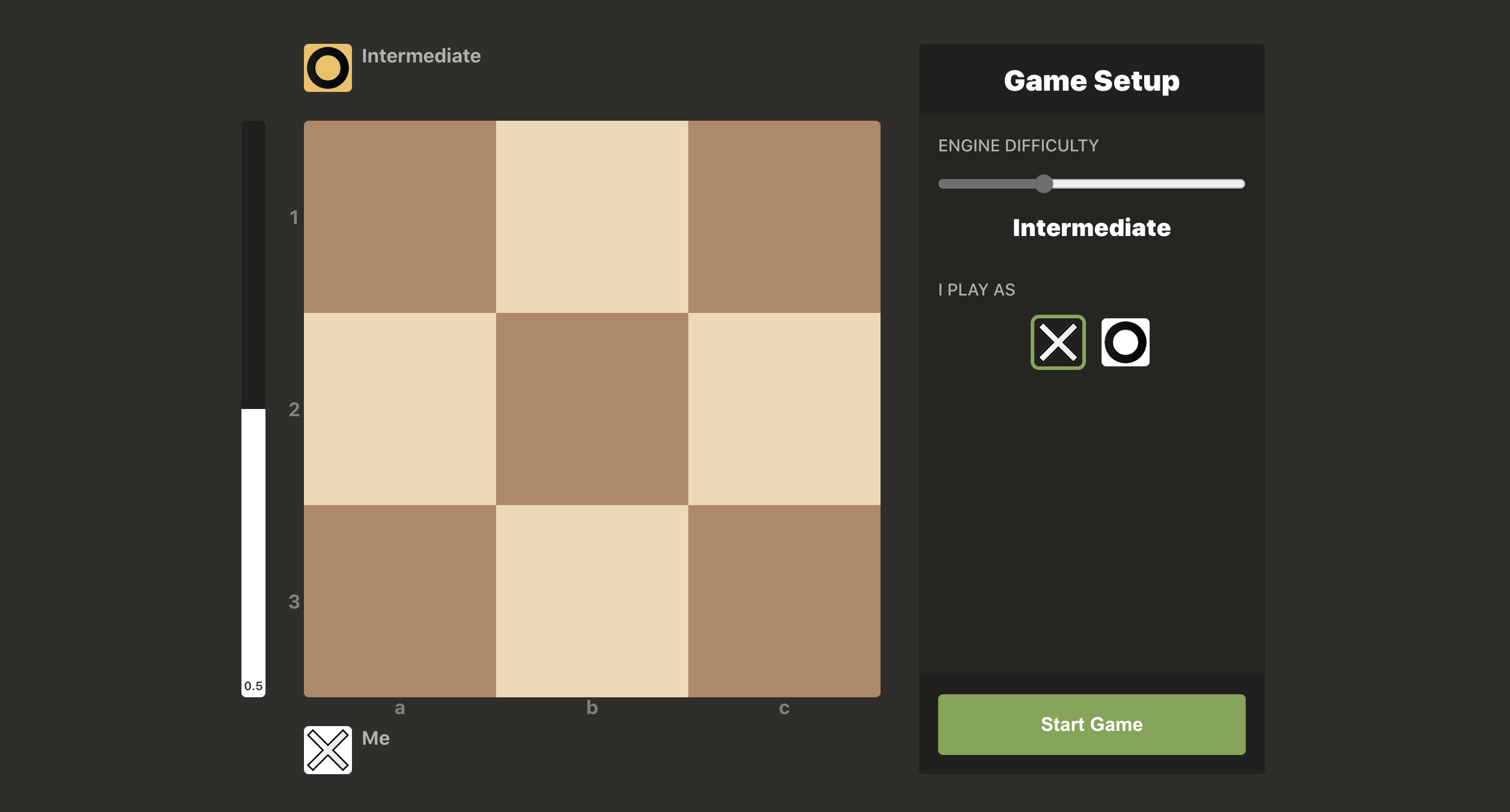

Game Setup

When starting a new game, you have a few options:

Engine Difficulty

The Engine Difficulty is the difficulty of the computer opponent you will be playing. Each difficulty corresponds to a certain max depth that the engine will use when looking for moves. The difficulties are as follows:

I Play As

This option determines which pieces you’ll play with: Xs or Os. Xs will always go first.

Gameplay

As you play a game, there are a few components that may be of interest:

Evaluation Bar

The left-most component is the evaluation bar, which shows the evaluation of the current position relative to the human player. The human player’s position is represented by the white portion of the bar while the computer’s position is represented by the black portion of the bar.

The height of the human player’s position can range from 0% (completely losing) to 100% (completely winning). A height of 50% represents an even position.

On either side of the evaluation bar, you can see the score abbreviation, which will be one of the following values:

Gameboard

The gameboard is a standard 3x3 board. If it’s your turn, you can click a square to place your piece. Otherwise, the computer will make their move. You can tell which move was made last by looking for the square with the yellow tint.

Arc Graph

The first component in the body of the sidebar is the Game Arc Graph, which indicates how the positions have shifted throughout the entire game.

Sections above the midpoint of the graph (with a white fill) indicate favorable positions for the human player, while the sections below the midpoint of the graph (with a black fill) indicate favorable positions for the computer player.

Move List

As moves are made, they will appear within the Move List, which is located below the Arc Graph within the sidebar. Each move in the move list has several components:

The Move Number

Which turn the move was made.

The Move

What move was made. Moves are formatted piece-first followed by the coordinates that represent the square that the piece was placed on.

For example, Xc2 indicates that an X was placed on square c2 (column 3, row 2).

The Move Rating

The score that the engine gave the move (using infinite depth). Scores can range from -99 (losing) to +99 (winning), with 0 being indifferent. X moves have white backgrounds while O moves have black backgrounds.

The Classification Icon

When a move is rated, it is classified relative to the other possible moves. The icons on the right indicate which classification the move falls under. These classifications and their meanings are as follows:

Icon Classification Meaning
Best Move This move was the best possible move (or is among the best possible moves)
Excellent Move This move is a great move but a better move exists
Good Move This move is okay, there are better moves. This could also mean there may not be a better move available, but it is still not a great move.
Inaccuracy An opportunity was missed to improve your position
Mistake This move actively worsened your position

Inaccuracy and Mistake classifications will list the best possible move to the right of the classification.

Hint Button

If it’s currently your turn to make a move, clicking the hint button will display the best possible moves given the current position. These moves will have a green tint.

Engine

The engine uses the minimax algorithm to recursively check game branches, keeping track of the best score for each available move. It’s adapted from a similar implementation found in this repo. First, we create a Board class, which represents the gameboard.

class Board {
    constructor(state) {
        this.state = state;
    }
}

The state of the board is represented by an array of strings. Each index of the array contains either an x, o, or - (indicating an empty square). We supply the Board class with some methods like isEmpty, isFull, insert, and getAvailableMoves (I won’t show these, since they’re pretty standard).

Lastly, we need a method to check for a winner:

isTerminal() {
    // If the board is empty, it is not terminal
    if (this.isEmpty()) return false;
    // Loop through each possible win combination
    const winCombos = [[0,1,2],[3,4,5],[6,7,8],[0,3,6],[1,4,7],[2,5,8],[0,4,8],[6,4,2]];
    for (let i = 0; i < winCombos.length; i++) {
        // Check to see if x satisfies the current win condition
        const xWin = winCombos[i].reduce((acc, ind) => acc && this.state[ind] === 'x', true);
        // If so, return 'x' and the combination that won
        if (xWin) return { winner: 'x', squares: winCombos[i] };
        // Check to see if o satisfies the current win condition
        const oWin = winCombos[i].reduce((acc, ind) => acc && this.state[ind] === 'o', true);
        // If so, return 'o' and the combination that won
        if (oWin) return { winner: 'o', squares: winCombos[i] };
    }
    // If the board is full and no winner is found, the game ends in a draw
    if (this.isFull()) return { winner: 'draw' };
    // Otherwise, the board is not terminal
    return false;
}

This method should return false if the game has not finished, otherwise it will return a winner object. Next we define a class to represent a Player:

class Player {
    constructor(maxDepth = -1) {
        this.maxDepth = maxDepth;
        this.scoreMap = new Map();
    }
}

We supply the Player class with maxDepth, which represents how many moves into the future the engine will look when scoring moves. The lower the maxDepth, the easier the opponent will be. By default, maxDepth is -1, meaning the engine will check all possible combinations of moves.

Finally, we add our minimax algorithm getBestMove as a method within Player:

getBestMove(board, maximizing = true, depth = 0) {
    if (depth === 0) this.scoreMap.clear();
    // Check to see if the game has finished
    const gameFinished = board.isTerminal();
    if (gameFinished || depth === this.maxDepth) {
        // If the winner is the maximizing player,
        // return 100 - depth (prioritize faster wins)
        if (gameFinished.winner === 'x') return 100 - depth;
        // If the winner is the minimizing player,
        // return -100 + depth (prioritize faster wins)
        else if (gameFinished.winner === 'o') return -100 + depth;
        // Otherwise, return 0
        else return 0;
    }
    // Set best score to the minimum maximizing move score
    // or the maximum minimizing move score
    let best = maximizing ? -100 : 100;
    // Search each available move given the current board state
    board.getAvailableMoves().forEach(index => {
        // Create a new board object
        const child = new Board([...board.state]);
        // Make the current move
        child.insert(maximizing ? 'x' : 'o', index);
        // Recursive call to get the best score of this move's game tree
        const nodeValue = this.getBestMove(child, !maximizing, depth + 1);
        // If the score is better than the current best score, update best
        best = maximizing ? Math.max(best, nodeValue) : Math.min(best, nodeValue);
        // If depth is 0 (i.e. our base call),
        // set the node map for the score of this move
        if (depth === 0) {
            // If other moves already have this score,
            // add the current move to the existing move array
            const moves = [...this.scoreMap.get(nodeValue) || [], index];
            this.scoreMap.set(nodeValue, moves);
        }
    });
    // If depth is 0 (i.e. our base call) return the best move
    if (depth === 0) {
        return this.scoreMap.get(best);
    // Otherwise, return the move that had the best score this round
    } else {
        return best;
    }
}

getBestMove is a recursive method that will return the best possible move given some board state and whether or not the player is the maximizing player. At the same time, it populates the Player’s scoreMap, mapping every possible move to a score (after searching maxDepth moves into the future).

With these values, we have everything we need to make computer moves of varying difficulty, and to check human moves against the engine for scoring and position evaluation.

Given some board state and a playerObject (which contains the player’s pieces as well as their difficulty, if any), we get an array of best possible moves with the following function:

const getMoves = (state, playerObject) => {
    // Create a new board
    const board = new Board(state.split(''));
    // Determine the engine depth based on difficulty
    let maxDepth = -1;
    if (playerObject.difficulty < 3) {
        // 1 for Beginner (0), 3 for Intermediate (1), 5 for Advanced (2), and -1 for Expert (3)
        maxDepth = playerObject.difficulty * 2 + 1;
    }
    // Create a new Player with the proper max depth
    const player = new Player(maxDepth);
    // Get the best move(s)
    return player.getBestMove(board, playerObject.pieces === 'x');
}

We can use getMoves any time we need a computer player to make a move. We’ll also need a function that can rate a move given some board state, piece and move.

const rateMove = (state, piece, move, playerPiece) => {
    // Create a new board using the state
    const board = new Board(state.split(''));
    // Normalize the move score depending on the piece
    const normalize = piece === 'x' ? 1 : -1;
    // Create a new Player
    const player = new Player(-1);
    // Get the best move. This creates the node map that scores every possible move
    const best = player.getBestMove(board, piece === 'x');
    // Convert the node map to an array of { score, moves } objects
    const moveMap = Array.from(player.scoreMap);
    const moves = moveMap.map(entry => ({
        score: Number(entry[0]) * normalize,
        moves: entry[1]
    // Sort from best to worst
    })).sort((a, b) => b.score - a.score);
    // Find the score for the move in question, then classify it
    for (let i = 0; i < moves.length; i++) {
        if (moves[i].moves.includes(move)) {
            // Scores range from -0.99 to 0.99
            const score = moves[i].score / 100;
            return {
                // The score given by the engine
                score: score,
                // The board position relative to the human player (0 min, 1 max)
                position: getPosition(score, piece, playerPiece),
                // The move "type", i.e. whether it was "BEST", "GOOD", "INACCURACY", "MISTAKE", etc.
                classification: getClassification(score, i),
                // The best move. If our move is one of several best moves, make sure we return ours
                best: i === 0 ? move : best[Math.floor(Math.random() * best.length)]
            };
        }
    }
}

We do things similarly, but this time we search for the move within the scoreMap. We return a bunch of data related to the rating of the move, like the weighted score, the position relative to the human player, the classification, and the actual best move that may have been missed.

getMoves and rateMove are our two main engine functions. The rest of the functionality is handled by several state variables throughout our React components.
